Cable cleat calculator

Find a candidate cleat, then check its matching test report.

Use peak current, not RMS.

Selection guidance only. A qualified engineer must confirm the inputs, installation and matching test report.

Read the selection guidance

Recommendations from Band-It’s calculator are based on the information you enter and provide general product guidance. They do not replace engineering advice or guarantee performance.

Check that all inputs are correct, and have a qualified engineer review the design, installation and final product selection. Confirm suitability with UES Promura or Band-It before purchase or installation.

Calculator inputs are sent to Band-It to obtain a recommendation. UES Promura prepares the result PDF. Your contact details are sent to UES Promura only when you submit an enquiry.

Before you start: project checklist

Project details to have ready

Cables
outside diameter, number of conductors, formation and jacket limitations.
Fault duty
the project engineer’s required peak kA, with RMS values identified separately.
Support

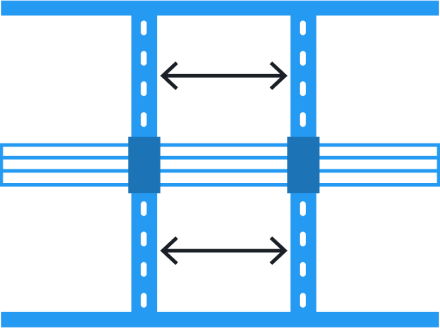

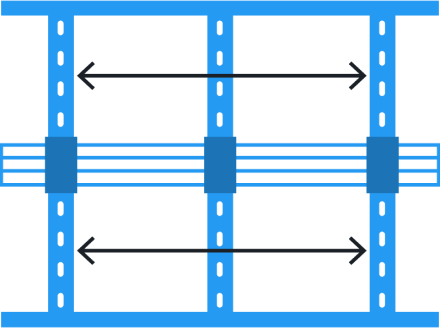

slotted or unslotted ladder, rung-slot dimensions, spacing, mounting method and tool access.
Complete assembly
band, clip, wrap count, liner or bracket, compatible tooling and installation procedure.
Delivery and records
quantities, project location, required dates, inspections and any specified installation records.
View test reportsDiscuss your project

Selection inputs go to Band-It; UES Promura prepares the result PDF. Ask for calculator help.
