Band-It range
Band-It Cable Cleats & PPA Coated Band
PPA-coated Type 316 stainless steel band for cable management. Explore Band-Fast resources, features, installation tools and the cable cleat calculator.
Specifications & features
- Increased profitability
- Logistical and handling benefits
- 316 grade stainless steel
- High Performance 0.42mm thick PPA 571 coating eliminates the need for protective channel or lining
- Zero Halogen – low smoke and fumes
- Materials covered by multiple approvals
- Standard Width: 15.88mm – other widths available
- Large diameter adjustment – fewer stock items
Product details & applications
Explore project resources, BAND-FAST options and data centre enquiries.
Cable cleat resources
Cable Cleat Calculator — select a product and download results

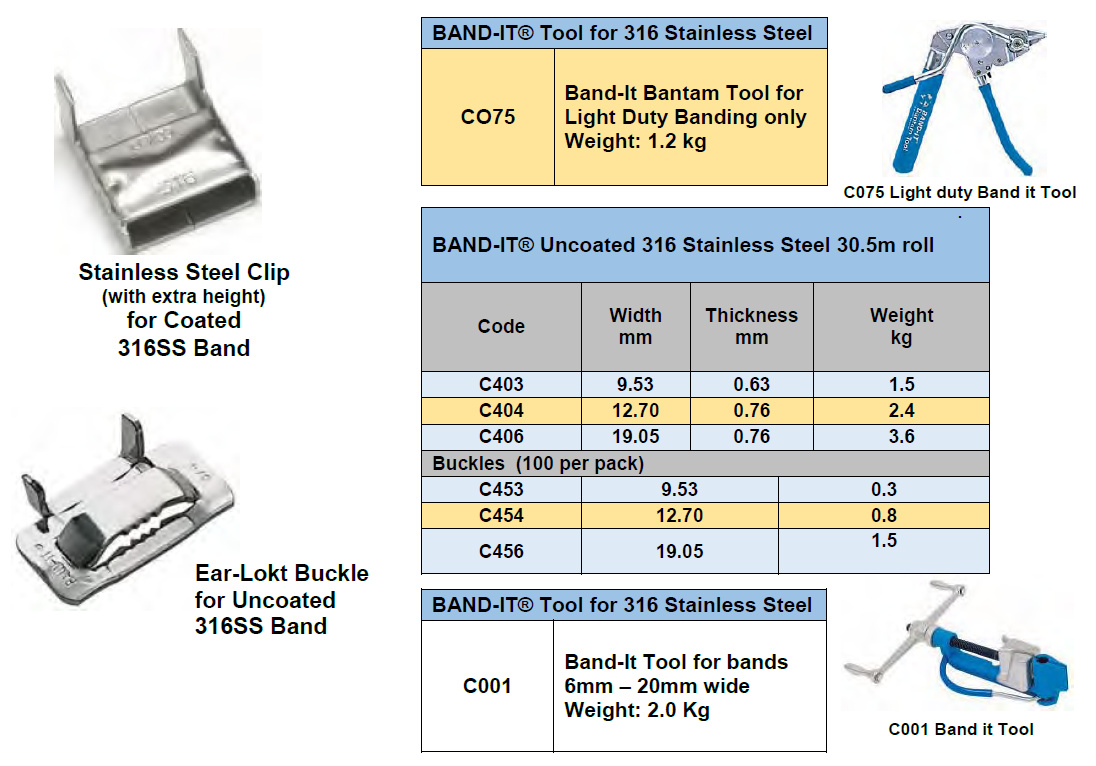

Band-It 316 Stainless Steel Band – Coated and Uncoated
The Band-It 316 Stainless Steel provides superior corrosion resistance in atmospheric and marine conditions.
It is available either as Coated or Uncoated.

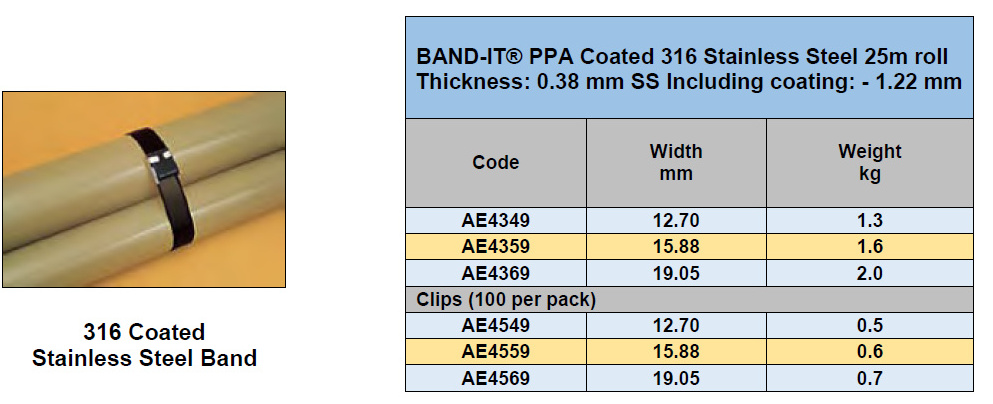

Band-It PPA Coated 316 Stainless Steel Band – Ideal for Cable Cleats & Cable Bundling.
The thick PPA coating is designed to eliminate damage to electrical cables and is the best solution for cable bundling.
Band-It’s Band-Fast cable restraint solutions are the perfect alternative to cable cleats
for cable management that require short-circuit protection to IEC61914:2015 Standards.
Band-It’s Band-Fast products cost significantly less than traditional cable cleats.
When you need to increase productivity and reduce the risk of injury,
use Band-It PPA Coated Band-Fast and create a safe and efficient work environment.
Band-It 316 stainless steel coated with 0.42mm thick PPA.
The PPA coating make this product ideal for cable bundling.
Eliminates damage to electrical cables.
Related product images
Compare the complete installation package
| Project consideration | Conventional assemblies | BAND-FAST approach |
|---|---|---|
| Components | May use separate cleat bodies, brackets, fixings and liners. | Specified arrangements can reduce separate components; uncoated versions still require the specified liner. |
| Installation sequence | Some arrangements require hardware to be staged before cable pulling. | Compatible arrangements allow installation after cables are placed and aligned. |
| Space and selection | Fixed sizes and hardware can affect tray clearance and stock requirements. | Low-profile banding and diameter adjustment can simplify the package. |
| Performance evidence | Compare the actual cable formation, peak current, spacing, wrap and support against the matching test report for either system. | |
Download the existing one-page comparison. Material and installation savings depend on the project and the assembly being compared.
Understand the evidence
- PDL-26.160.04 — CFFC cable cleat test report (300 mm / 600 mm) — 31 laboratory report pages plus a UES code-edition cover; see the tested wrap, spacing and bracket configurations. Read the configuration notes.
- Short-circuit reports and configuration notes — tested arrangements and matching conditions.
- BAND-IT internal fire evaluation — 24 April 2026 — internal, non-accredited exposure and retention evaluation; not third-party assembly fire certification.
- PPA 571 coating fire/fume references — coating properties, distinct from a complete cleat assembly.
- Lloyd’s Register LR26344037TA renewal — listed ties, buckles and band for its stated marine/offshore/industrial scope; expires 7 July 2031.
For final selection, request the report and instructions that match the specified product, formation, wrap, spacing and support.
Installation training
Follow the procedure for your selected restraint assembly. Tensioning and clip finishing are separate steps.
View the manual C075 and short-circuit demonstrations · August 2026 selection webinar · June 2026 mechanical protection webinar
Related downloads
Tools & Instructions
Cable Restraint
Catalogues & Product Guides
| Document | Format |
|---|---|
| Band-It IDEX Product Solutions Guide | |
| Band-It Short Circuit Testing Summary |
Quality & Approvals
| Document | Format |
|---|---|
| PPA 571 Fire Tests And Fire Fume Certificates – Summary |
Band-It tool spare parts
Find replacement parts by tool model or part number, with manuals to help confirm the part you need.
Not sure which BAND-IT components you need?
Capture your cable restraint requirements and review the product family, supporting evidence, and next steps.
Need help choosing a Band-It product?
Contact UES Promura for product advice and technical support.
